Pressure Gauge - Linea PB
The Linea PB espresso machine utilizes one central gauge on the barista dashboard indicating the pressure status for the steam and brew boilers.

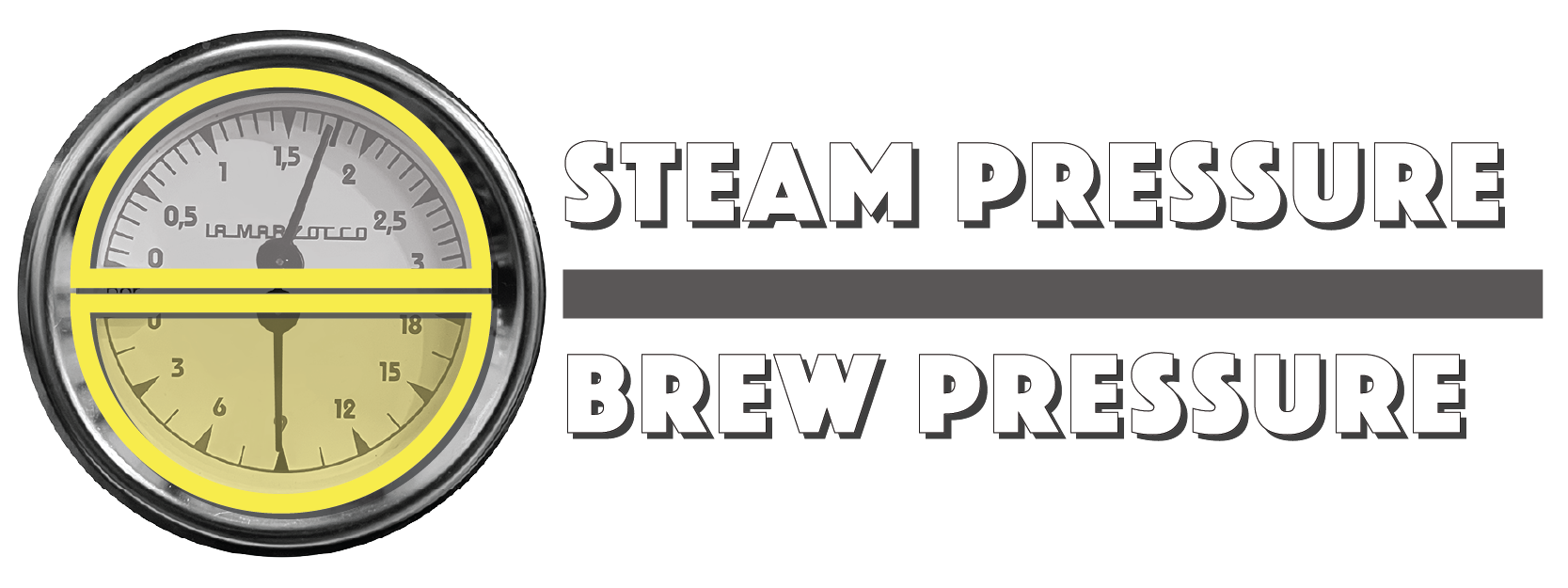

Linea PB Gauge Characteristics
- The top dial measures the active pressure within the steam boiler:
- Typically between 1.4 & 1.8 Bars.
- Whereas the bottom dial measures active espresso brewing pressure:
- 9 Bars.

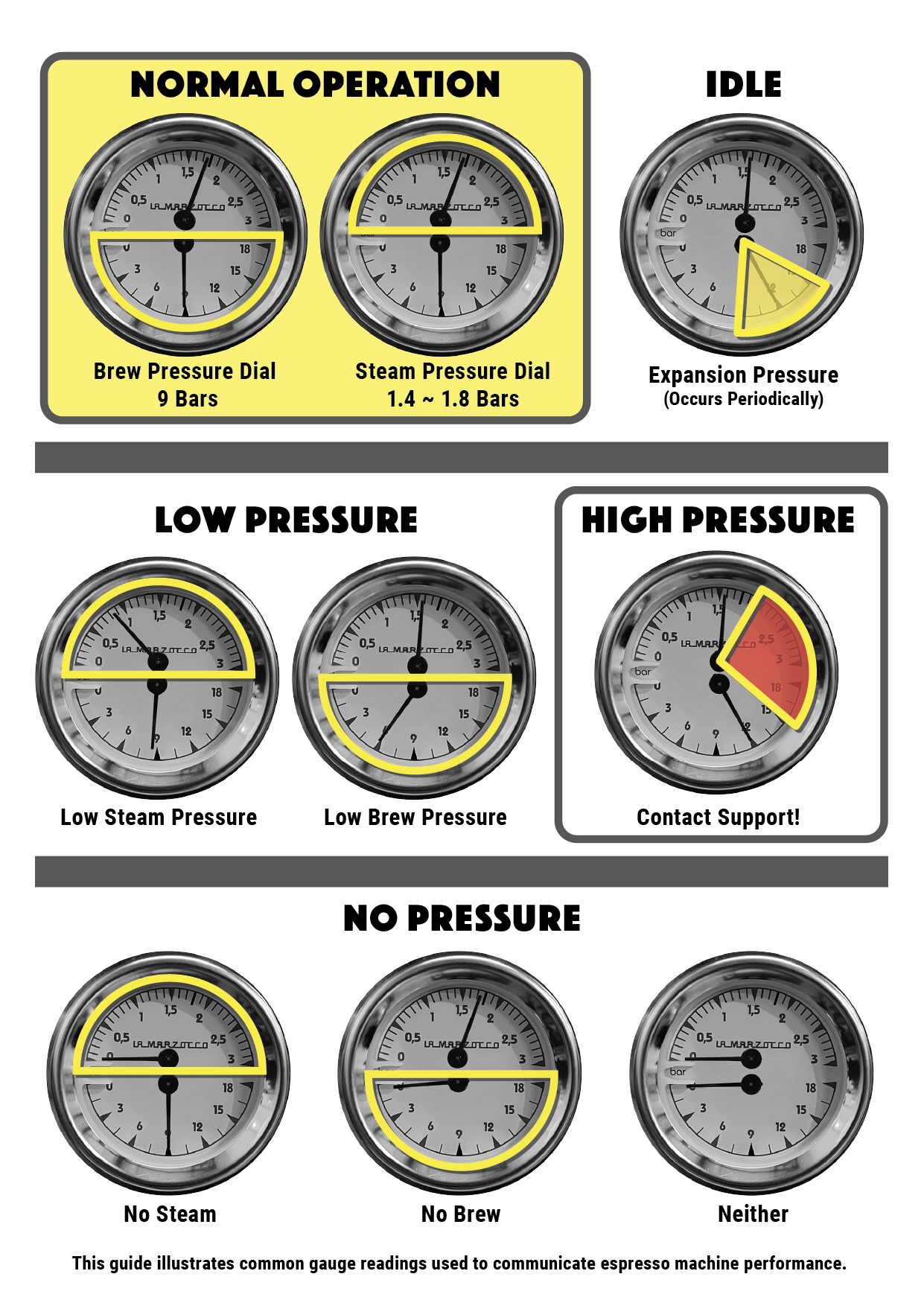

The guide below illustrates the common gauge positions on the espresso machine.
During operating hours, both the steam and brew dials on the gauge should display 'Normal Operation' as shown below. With the occasional fluctuations, particularly the 'Idle' state.
